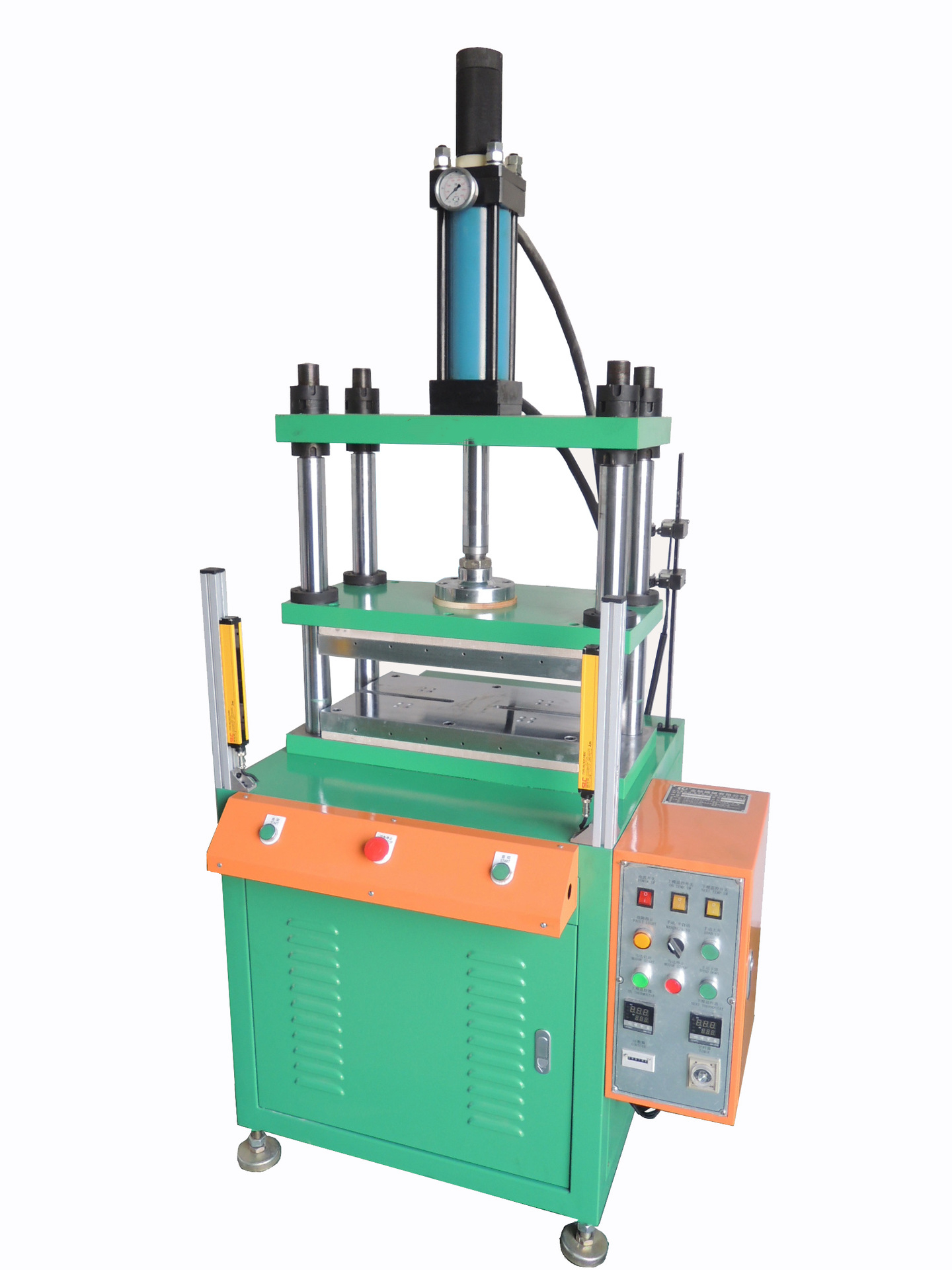

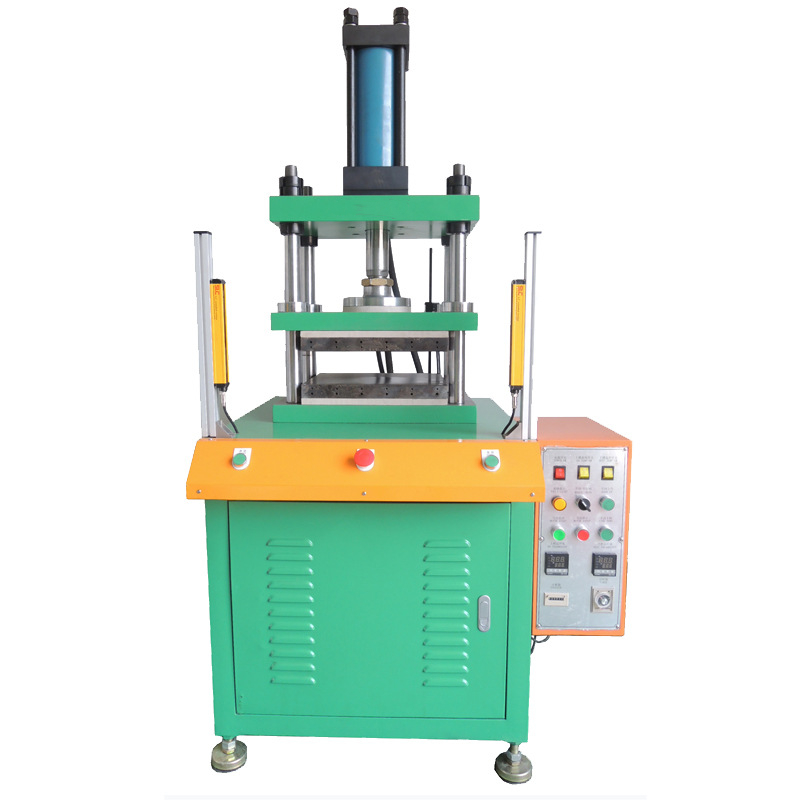

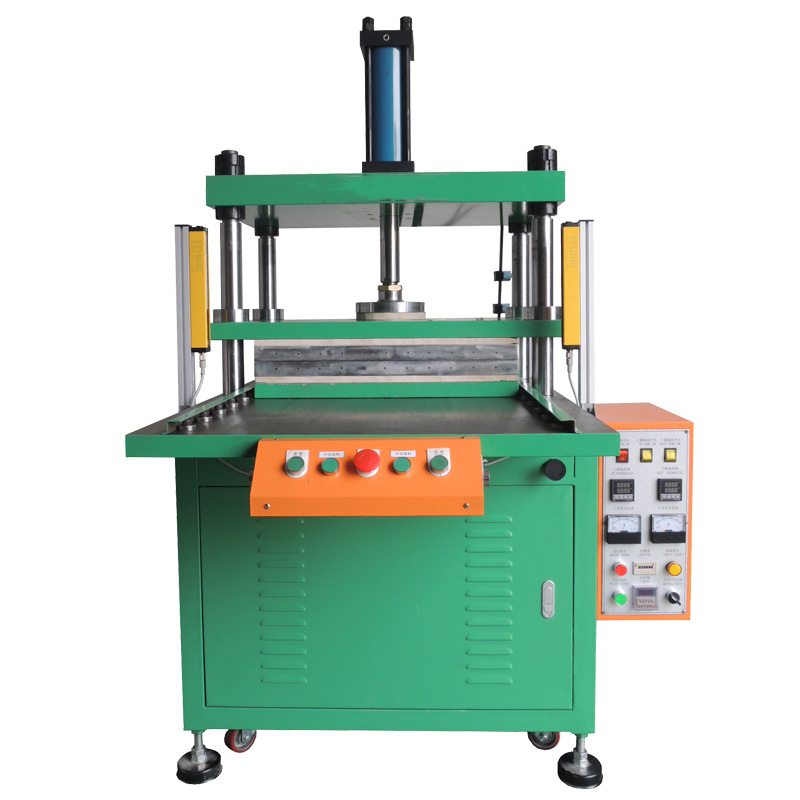

Hot Press Machine Hydraulic Press Machine Hot Press Forming 4 Column Hydraulic Heat Machine

Hot stamping forming of concave and convex surfaces such as membrane switch and speaker film;
Plastic pellet pressing test, thin film thermal bonding and crimping;
It is suitable for the production and use of large-area thermoformed products.

ꄴ上一个： null

ꄲ下一个： null

Features:

1. The four-column three-plate steel structure is adopted, the movable plate is parallel to the working surface and the four-column is matched with a precision guide sleeve, which has high precision;

2. The hydraulic station is in the frame, with compact structure, beautiful appearance, simple hydraulic circuit design, and easy maintenance;

3. Pressure, stroke, speed, pressure holding time, etc. can be adjusted according to the requirements of the system;

4. The temperature of the upper and lower heating plates is controlled separately, using RKC intelligent temperature controller, the temperature control is accurate to ±1℃;

5. Using Taiwan brand hydraulic and electrical components and Japanese NOK seals, durable;

6. Two-hand operation, equipped with emergency stop button and inching function, easy to install and adjust the mold, high safety;

7. There are casters and foot cup holders under the workbench, which are portable, labor-saving and efficient;

8. Another optional safety photoelectric protection device, humanized, safer and more assured work;

9. Special requirements such as non-standard worktable size and high-pressure models can be customized.

technical parameter:

model	unit	JCR-03T	JCR-05T	JCR-10T	JCR-20T
Cylinder pressure	ton	0.9-3	1.5-5	3-10	5-20
System pressure	kg/cm2	20-70	20-70	40-140	40-140
Platen area	mm	450*300	450*300	450*300	450*350
Maximum stroke	mm	150	150	150	200
Opening height	mm	200	200	200	200
heating time	S	0-3	0-3	0-3	0-3
temperature range	°C	Room temperature -250±1	Room temperature -250±1	Room temperature -250±1	Room temperature -250±1
Electric heating tube power	kw	4.8	4.8	4.8	4.8
Motor Power	kw	2.25	2.25	3.75	5.5
using electric	V	380	380	380	380
Hydraulic oil and capacity	L	VG46/50	VG46/70	VG46/90	VG46/90
Weight (reference)	kg	450	500	600	800

Note: The above parameters are for reference only, and the order is subject to the contract.

Scope of application:

1. Hot stamping forming of concave and convex surfaces such as membrane switch and speaker film;

2. Plastic pellet pressing test, thin film thermal bonding and crimping;

3. It is suitable for the production and use of large-area thermoformed products.
